Description

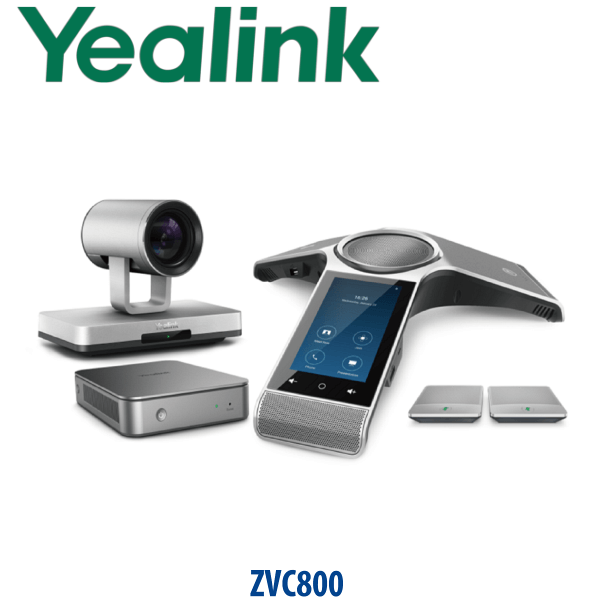

Yealink ZVC800 Dakar
Yealink has entered into a partnership with Zoom to create the Zoom Rooms Kit Yealink ZVC800 Video Conferencing System, which are one-stop video solutions that come fully installed with Zoom Rooms software. The solution offers guaranteed crystal-clear video and dynamic audio courtesy of Yealink CP960 Conference Phone and Yealink UVC80 optical PTZ camera, a combination that delivers amazing Zoom Rooms experiences for medium and large rooms.
Yealink ZVC800 Features :
- Full One-Stop-Shop Package
- The Yealink ZVC800 is a complete Zoom Rooms kit, a package that is delivered fully boarded with a Yealink UVC80 12X optical USB PTZ camera with power adapter and cables, an MCore mini-PC, a CP960 Zoom edition conference telephone with Power over Ethernet adapter and cables, as well as two CPW90 wireless expansion microphones. The package also comes with the requisite software and license, making it simple to acquire and deploy while enjoying convenient after-sales service.
- Ease of Deployment and Use
- The Yealink ZVC800 employs one-cable technology, which eliminates the hassle of connecting a USB cable from the monitor to the conference room, thereby making deployment as easy as ABC. The supplied Yealink CP960 Conference Phone further creates a convergence zone for microphones, meeting console, and speaker into one package for a clutter-free workspace. Users are able to join meetings through a multi-touch five-inch display console. The same is used when adding participants, controlling the Pan-Tilt-Zoom Camera, and adjusting volume levels, simplifying the management of virtual meetings and conferences.
- Breathtaking Audio and Video Meetings
- Inbuilt into the Yealink ZVC800 is a three-microphone array to give users a 360-degree voice pickup range that extends for an impressive 20-foot (six-meter) radius. It boasts Yealink Noise Proof Technology which suppresses background noise and ambiance to ensure everyone in the room is heard with clarity. There is also the option of adding two CPW90 wireless expansion microphones to increase the pick-up radius of the CP960 to 40 feet (12 meters) without extra wiring. Users of the Yealink ZVC800 enjoy sharp, smooth and crystal-clear video with a deep field of focus courtesy of the embedded Yealink UVC80 optical PTZ camera. It also delivers a broad view of the conference hall as a result of the wide-angle horizontal FoV lens and adjustable camera angle, with auto-framing and camera preset for smarter and simplistic camera control.
- Remote Device Management
- Through Yealink Device Management Platform and Cloud Service Portals, users are able to manage the ZVC800 Zoom Rooms Kit, making it easy to control the device remotely. The platform is enabled for remote configuration, upgrading of the device firmware, as well as monitoring and diagnosis. Users are also able to acquire the latest driver versions and plug-ins for the UVC camera through Windows Update, enhancing their Zoom Rooms experiences.
Yealink ZVC800 Specifications :
| MCore Package | • 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB) • Storage: 128GB SSD • 2 x HDMI video output (CEC supported) • Bluetooth and Wi-Fi • 4 x USB3.0 Type-A • 1 x 10/100/1000M Ethernet port • 1 x Power port • 1 x Security lock slot • Built-in cable management |

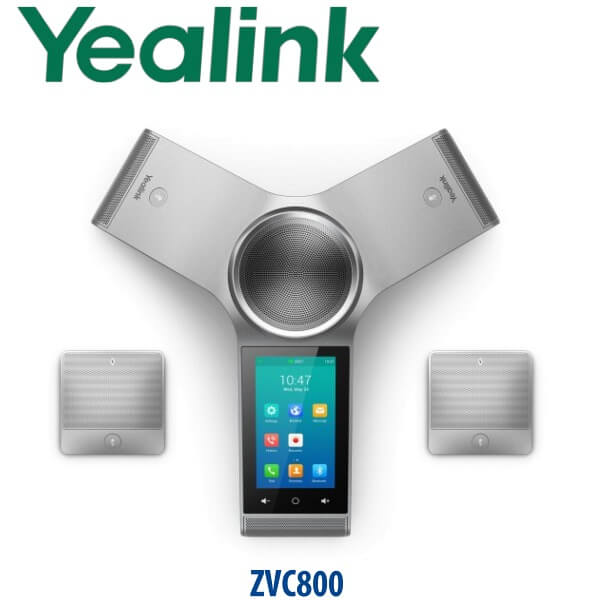

| CP960 Conference Phone | • 5” 720×1280 capacitive touch screen
• 1 x RJ45 10/100M Ethernet port • Power over Ethernet (IEEE 802.3af), class 4 • 2 x Wired MIC port • 2 x USB 2.0 port • 1 x 3.5mm audio-out port • 1 x USB 2.0 Micro-B device port • 1 x Security slot |
| CPW90 Wireless Microphones (optional) | • DECT technology, up to 50 meters distance
• 10ft (3-meter) voice pickup range of every microphone unit • Built-in Li-battery, 11 days standby, 19 hours talking time • Charging cradle, charging any time |
| UVC50 USB PTZ Camera
|
• 1920 x 1080 video resolution
• 60 frame-rate • 5x optical zoom • Field of View (diagonal): 91° • Auto-framing • Camera presets • Pan range: 60° • Tilt range: 40° • 1 x Line-in (3.5mm) • 1 x Line-out (3.5mm) • 1 x Yealink Microphone port (RJ-45) • 1 x USB 2.0 Type-B • 1 x USB 2.0 Type-A • 1 x Power port • 1 x Security lock slot • 1 x Reset slot |

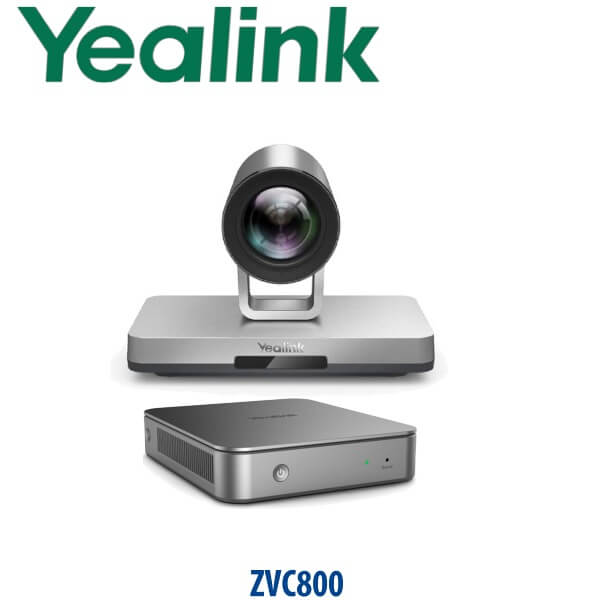

| UVC80 USB PTZ Camera | • 1920 x 1080 video resolution
• 60 frame-rate • 12x optical zoom • Field of View (diagonal): 78.5° • Auto-framing • Camera presets • Pan angle range: 200° • Tilt angle range: 60° • 1 x Line-in (3.5mm) • 1 x Line-out (3.5mm) • 1 x Yealink Microphone port (RJ-45) • 1 x USB 2.0 Type-B • 1 x USB 2.0 Type-A • 1 x Security lock slot • 1 x Reset slot |
| Package Physical Features
|
• Operating humidity: 10~95%
• Operating temperature: 0~40°C • Storage temperature: -30~70°C • N.W/CTN: 6.9 Kg (ZVC500 Zoom Rooms Kit) • G.W/CTN: 8.0 Kg (ZVC500 Zoom Rooms Kit) • N.W/CTN: 7.6 Kg (ZVC800 Zoom Rooms Kit) • G.W/CTN: 8.7 Kg (ZVC800 Zoom Rooms Kit) |
