Description

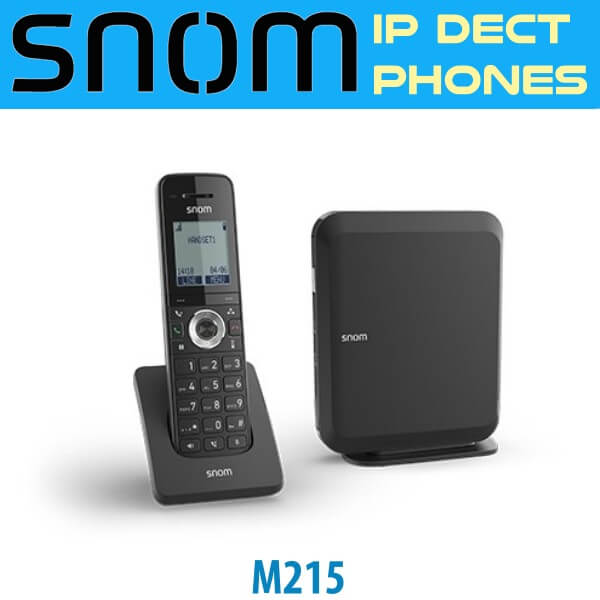

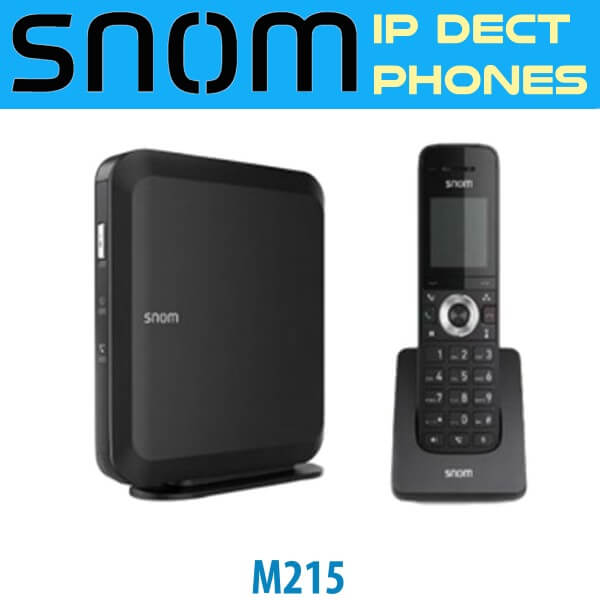

SNOM M215 SC DECT Bundle Dakar

A set of powerful batteries enables you to enjoy a maximum of up to 7 hours of talk time and up to 7 days on stand-by in Snom M15SC Handset, ensuring that you never miss any call. The highly efficient device is designed for use in offices and homes. The high performance handset features a backlit graphic LCD with 90 x 65 pixels, 2.5 mm headphone jack, speakerphone, illuminated keypad, and a voicemail notification LED. It offers you a transmission and reception range of up to 50m indoors and is compatible with GAP bases. The Snom M15SC Handset has been built to enable the user enjoy a number of advanced call features including, Call transfer,Call forwarding, Hold function, mute function and many others.

The M200SC Base Station can easily be powered using Power over Ethernet (PoE), making integration with M15 SC phones easier. Telephones automatically download the latest software when first connected to the M200SC Base Station. The powerful M200SC Base Station is SIPv.2.0 – compliant and supports up to 6 SIP accounts as commonly used in cordless phones, and enables a user to make up to 4 simultaneous calls. It boasts of a transmission and reception range of up to 50m when indoors and allows for up to 200 numbers in the voice phone book and up to 200 numbers in the call history lists. It is also equipped with the most advanced call features including, Caller ID,Call plan, Hold function, Call forwarding. Call divert, Do not disturb function (DND), Intercom function, as well as 3 –  way conference calls per base.

SNOM M200SC  BASE STATION FEATURES

REMOTE MANAGEMENT VIA TECHNICAL REPORT – 069 (TR – 069)

This feature simplifies an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. Snom M200SC Base Station uses CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance management, and diagnostics. It is based on HTTP protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol in turn addresses the growing number of different internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and other VoIP devices.

SUPERB AUDIO QUALITY

The Snom M200SC Base Station is wideband audio – enabled, uses code negotiation, codec switching and supports a number of different codecs including, G.722 (5 channels, 4 in multicell operation), G.711 (A-law, μ-law) and G.726 (10 channels, 8 in multicell operation),and G.729, resulting in crystal audio.

DUAL – STACK IPv6  & IPv4 ACCESS

The advanced next – generation IPv6 Internet protocol solves the problem of IP address shortage. Basically, every server or terminal has a public address to be accessed directly without translating intranet addresses by NAT or NAT traversal using technologies like STUN in an IPv6 Network, therefore making VoIP applications simpler. The Snom M200SC Base Station fully supports IPv6 protocols with respect to operator IMS access, SIP basic call, TLS encryption, and TR069 remote management. A user therefore has the freedom of choosing between IPv4 and IPv6 connection depending on their network environment. If the operator’s IP/IMS server is IPv4, the gateway allows direct access to the SIP network without any configuration, and if the server is IPv6, the gateway need only set the SIP audio transmission mode as IPv6. During these transmissions, all investments in the existing equipment are secured, existing audio services are not affected, and existing network structure and users’ habits remain the same.

SIP CONVENIENCE

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Snom M200SC Base Station is based on SIP version 2(RFC3261). Furthermore, the Snom M200SC Base Station can not only be configured via a user interface, but it also accepts SIP NOTIFY messages from SIP proxy servers, which gives its ability to act as a web server.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Snom M200SC Base Station has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

MAXIMUM SECURITY

To secure your files and data from being accessed by any unauthorized users, devices and applications, the Snom M200SC Base Station uses protocols such as Transport layer security (TLS), LLDP-MED, OpenVPN, HTTPS server/client and DECT encryption, thus eliminating the risks of suffering any form of malicious cyber attacks. It also offers the user  a password – protected interface, thus securing your data highly.

COMPATIBILITY

The highly efficient Snom M200SC Base Station has been built to work perfectly with Broadsoft® BroadWorks, Asterisk – based platforms, Metaswitch networks, and Genband™ .

WALL MOUNTABLE

The Snom M200SC Base Station offers the user a quick and easy installation. It can be mounted on a wall, resulting in a cleaner and neater workstation.

CALL FEATURES

The Snom M200SC Base Station is equipped with a number of advanced call features including :

Conference Guide: This helps the user to easily set up group calls with a single click of a button. The hi-tech device allows for 3 – way group calls per base station. You can therefore  simply create a meeting or join one seamlessly while using your device.

Caller ID : Snom M200SC Base Station notifies the user of who is calling whenever there is an inbound call.

Call Divert : A  user can forward or redirect their incoming calls to an alternate number, which can be a landline or cellular number. They can also choose to divert incoming calls directly to voicemail.

SNOM M15SC HANDSET FEATURES

COMPATIBILITY

The versatile Snom M15SC Handset is compatible with GAP bases  such as the M200 SC base station (PN 00004359).

TRANSMISSION & RECEPTION RANGE

The Snom M15SC Handset allows for a transmission and reception range of up to 50m when used indoors, resulting in crystal clear audio devoid of distractions.

POWERFUL BATTERIES

Snom M15SC Handset is equipped with a battery with a capacity of 550mAh, 2.4V. On a single full charge, the robust battery can offer up to 7 hours of talk time and 7 days standby time.

CALL FEATURES

Call Transfer : This advanced feature of the Snom M15SC Handset allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button on the phone, or software that has been configured for use on the Wireless Phone.

Call Holding : You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Snom M15SC Handset.

Call History Lists : a user can easily access a list of all dialled and received calls, therefore not missing out on any important details.

SNOM M200SC BASE STATION SPECIFICATIONS

• Hardware:
  • Network connection: 10/100 BASE-T
  • Power supply via cable and PoE (Class 2)
  • Cordless handset localisation key
  • Reset button
  • LED status light
  • Wall mountable
• Features:
  • Up to 6 SIP accounts (used in common or individually for cordless phones)
  • Up to 4 simultaneous calls
  • Compatible with GAP devices
  • Over-the-air cordless software updates
  • Range up to 50 m indoors
  • Local directory and network
  • Up to 200 numbers in the voice phone book
  • Import/export phone book
  • Up to 200 numbers in the call history lists
  • Intercom function
  • Three way conference call per base
  • Caller ID
  • Call plan
  • Hold function
  • Call forwarding
  • Call divert
  • Do not disturb function (DND)
• Interoperability:
  • Broadsoft® BroadWorks
  • Asterisk based platforms
  • Metaswitch networks
  • Genband™
• Audio:
  • Codecs:
    • 711 a-law, u-law
    • 722
    • 726
    • 729
  • iLBC
• Set-up:
  • Configurable via web interface (Admin and User)
  • Provisioning:
  • DHCP Options 66/159/160
  • Plug & Play
  • Snom redirection service
  • TR-69
• Protocols:
  • SIP (RFC3261)
  • HTTP/HTTPS/TFTP/FTP
  • DHCP,NTP,SNTP,STUN,VLAN
  • RTP/SRTP
  • IPv4/IPv6
  • LDAP
• Security:
  • Transport Layer Security (TLS)
  • Provisioning file with AES encryption
  • OpenVPN
  • 1x
  • 1pq
  • LLDP-MED
  • Password protected web interface
  • DECT encryption
• Specifications:
  • Dimensions: 116 x 42,4 x 151 mm
  • Input voltage: 5V DC
  • Environmental conditions:
  • Operating temperature: from -5°C to 45°C
  • Non-operating temperature: from -5°C to 60°C
  • Humidity: up to 95% (non-condensing)
• Included in the package:
  • Base
  • Network cable
  • Quick start guide
  • Color: Black
  • Manufacturer’s warranty: 2 years
• M15 SC

SNOM M15SC HANDSET SPECIFICATIONS

• Hardware:
  • Backlit graphic LCD with 90 x 65 pixels
  • 5 mm headphone jack
  • Speakerphone
  • Up to 7 days battery life in stand-by
  • Up to 7 hours talk time
  • Voicemail notification LED
  • Illuminated keypad
  • Integrated belt clip
• Features:
  • Call history lists
  • Local directory and network
  • Call transfer
  • Call forwarding
  • Hold function
  • Intercom function between cordless devices connected to the M200 SC base
  • Mute function
  • Up to 10 numbers with speed dial
  • Range up to 50 m indoors
  • Compatible with GAP bases
  • Over-the-air software updates
• Specifications:
  • Dimensions: 174 x 49 x 31 mm
  • Batteries: 2.4 V / 550 mAH Ni-MH
  • Input voltage: 6V
  • Wall mountable charger base
  • Hearing Aid Compatibility (HAC)
  • Environmental conditions:
  • Operating temperature: from -5°C to 45°C
  • Non-operating temperature: from -5°C to 60°C
  • Humidity: up to 95% (non-condensing)
  • Included in the package:
    • Cordless M15 SC
    • Charging cradle
    • Power supply for charging cradle
    • Batteries
    • Quick start guide (QIG)
    • Color: Black
    • Warranty : 2 years
