Description

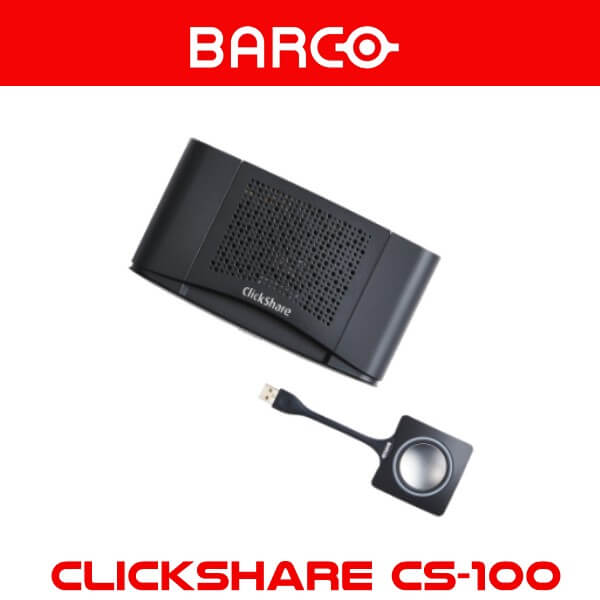

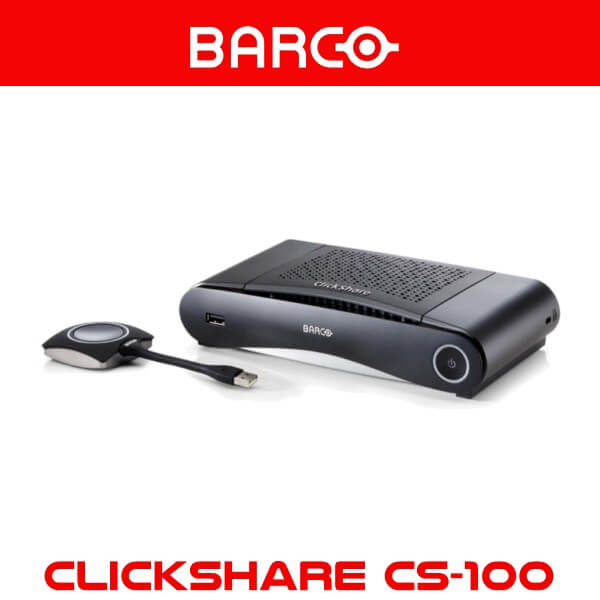

Barco ClickShare CS-100 Dakar

The ClickShare CS-100 Dakar brings the ClickShare experience to small meeting and huddle rooms where sharing content from a laptop or mobile device is a basic need. With the ClickShare Apps, users can also share content from their laptops, mobile phones or tablets. Make sure to have the latest firmware installed on your base Unit to enable the best experience with the Desktop App. The Barco ClickShare CS-100 Dakar is a stand-alone model with an HDMI output, that allows up to 8 users to connect and, with one user sharing at a time. The ClickShare CS-100 Dakar includes the standard ClickShare security features including encryption, login management, https and the possibility to hide the SSID of the Base Unit’s wireless network. The ClickShare CS-100 Dakar is a product created with ISO 27001 certified flows and processes. Adding ClickShare CS-100 to your fixed conference room set-up (like a Microsoft Teams or Zoom room) enhances collaboration in your Microsoft Teams and Zoom meetings. It brings the focus from conferencing back to truly collaborating.

Barco ClickShare CS-100 Specifications

ClickShare Base Unit dimensions

• Weight: 600g / 1.32lbs
• Dimensions (HxWxD): 205mm x 115mm x 45mm (Min.) / 8.1” x 4.5” x 1.8” (Min.)
• Power consumption: Operation: 6W (typical) / 18W (max), Standby: 2.6W (ECO standby) / 0.4W (Deep standby)

General specifications

• Operating system:
  • Windows 7/8/8.1/10 32 & 64 bit
  • macOS 10.14/10.15 (Catalina)
  • Android 9 & 10 (ClickShare app)
  • iOS 11, 12 & 13 (ClickShare app)
• Video outputs: 1x HDMI 1.2
• Output resolution: 1920×1080 @60Hz
• Audio: Via HDMI, analog via Audio Jack 3.5mm
• Frame rate: Up to 30 fps*
• Number of sources simultaneous on screen: 1
• Number of simultaneous connections: 8
• iPad, iPhone and Android compatibility: Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app
• Extended desktop: Available for Windows, requires ClickShare Extension Pack.
• Authentication protocol: WPA2-PSK in stand-alone mode, WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
• Wireless transmission protocol: IEEE 802.11 a/g/n
• Reach: Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
• Frequency band: 2.4 GHZ and 5 GHz (DFS channels not supported)
• Connections:
  • 1x Ethernet LAN 100Mbit
  • 1x (back) + 1x (front) USB
  • Audio analog line out on mini jack socket (3.5mm)
• Noise Level: Fanless
• Temperature range: Operating: 0°C to +40°C (+32°F to +104°F), Max: 35°C (95°F) at 3000m, Storage: -20°C to +60°C (-4°F to +140°F)
• Humidity: Storage: 0 to 90% relative humidity, non-condensing, Operation: 0 to 85% relative humidity, non-condensing
• Anti-theft system: Kensington lock
• Certifications: FCC/CE
• Warranty: 3 years standard
